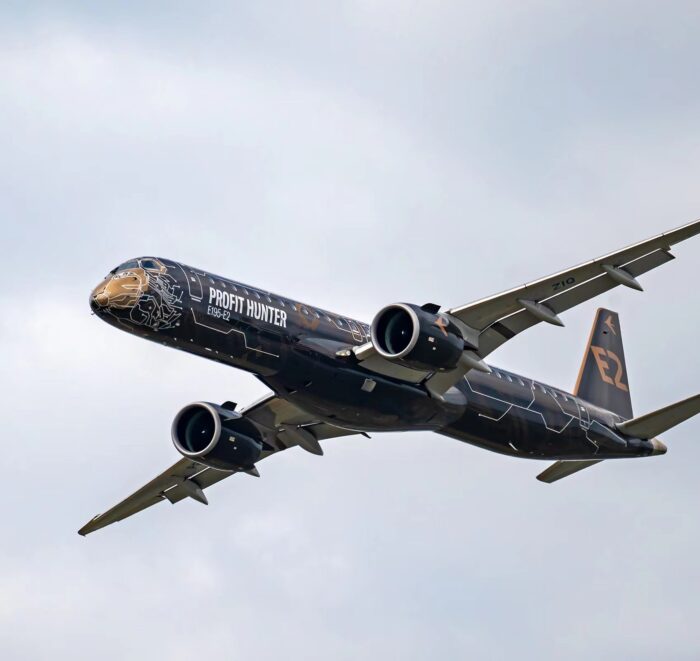

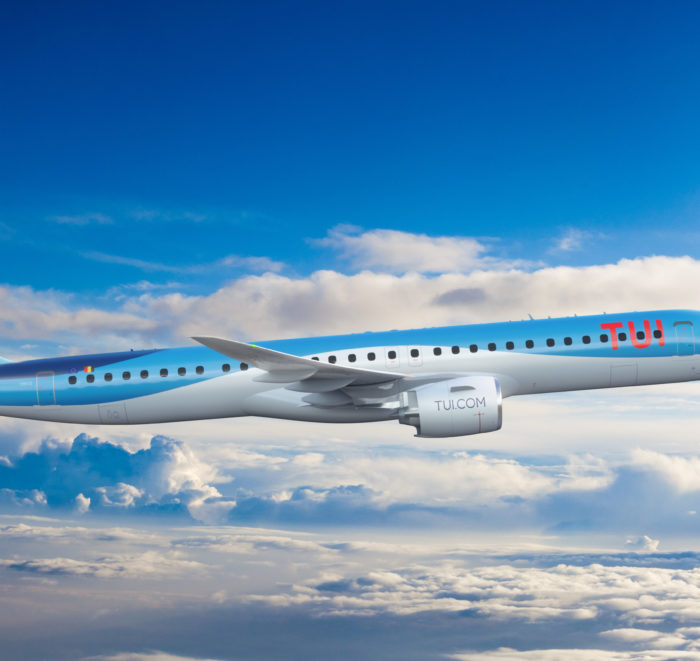

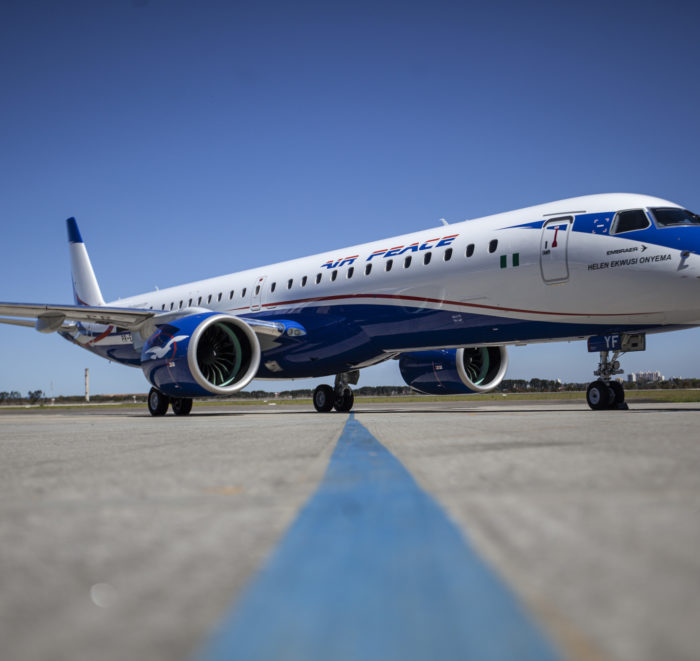

E195-E2
Better economics in operation
The largest aircraft in the E-Jet E2 family, the E195-E2 has been designed to maximize returns and efficiency on high-density routes. With its high-aspect ratio wings and swept tips, combined with other aerodynamic improvements, the E195-E2 achieves double digit lower fuel consumption compared to current-generation E-Jets.

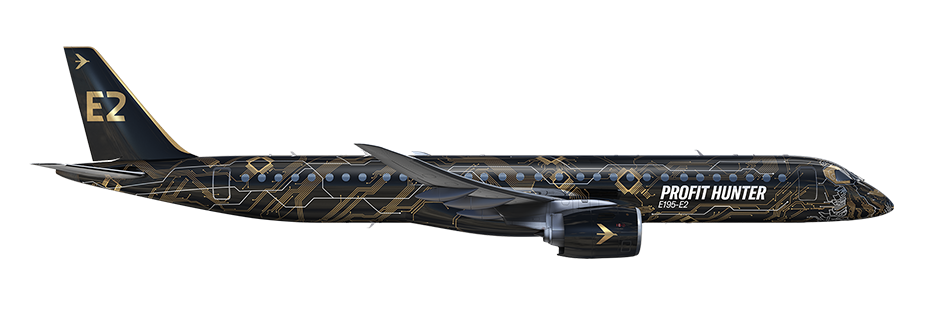

E195-E2 in detail
Specifications
Weights & Payload
Maximum Take Off Weight
62,000 kg / 136,687 lb
Maximum Landing Weight
54,000 kg / 119,049 lb
Maximum Payload
16,150 kg / 35,604 lb
Maximum Usable Fuel^
13,690 kg / 30,181 lb
Typical Seat Capacity
Three Classes
120 seats | 12 @ 36" | 24 @ 34" | 84 @ 31" pitch
Single Class
132 seats | 132 @ 31" pitch
Single Class
146 seats | 146 @ 28" pitch
Performance
Max Cruise Speed
Mach 0.82
Take Off Field Length*
1,840 m / 6,037 ft
Take Off Field Length**
1,305 m / 4,281 ft
Landing Field Length***
1,290 m / 4,232 ft
Service Ceiling
41,000 ft
Range****
2,600 nm / 4,815 km
*Fuel Density = 0.803 kg/l
*MTOW, ISA, SL – standard engine **TOW for 500nm, full PAX*, ISA, SL, standard engine ***MLW, ISA, SL
****Full PAX*, LRC, Typical Reserves, 100 nm alternate
*Single class seating, PAX weight = 100 kg = 220 lb
Range
- E175-E2
- E190-E2
- E195-E2
A combination of capacity and range in one high-performance aircraft family, the E2 is the ideal tool for operators wanting to enter new markets and take advantage of new opportunities.
A combination of capacity and range in one high-performance aircraft, the E175-E2 is the ideal tool for operators wanting to enter new markets and take advantage of new opportunities.
Carrying a full load pf passengers, the E175-E2’s range extends to 2,000nm (3,704km).
Carrying a full load pf passengers, the E175-E2’s range extends to 2,000nm (3,704km).
A combination of capacity and range in one high-performance aircraft, the E190-E2 is the ideal tool for operators wanting to enter new markets and take advantage of new opportunities.
Carrying a full load pf passengers, the E190-E2’s range extends to 2,850nm (5,278 km).
Carrying a full load pf passengers, the E190-E2’s range extends to 2,850nm (5,278 km).
A combination of capacity and range in one high-performance aircraft, the E195-E2 is the ideal tool for operators wanting to enter new markets and take advantage of new opportunities.
Carrying a full load of passengers, the E195-E2’s range extends to 2,600nm (4,815km).
Carrying a full load of passengers, the E195-E2’s range extends to 2,600nm (4,815km).
See how far the E195-E2 flies. Choose a city:
Ranges are indicative only, are based on ISA temperatures, zero winds, and maximum passengers in standard, single-class configuration and are not to be used for flight planning or dispatch.

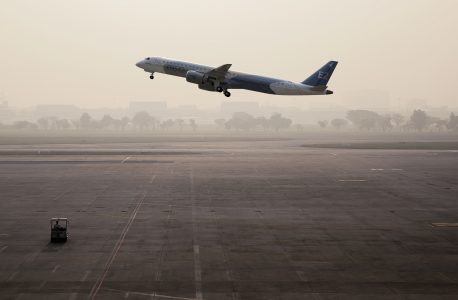

New revenue opportunities
New revenue opportunities
The E195 E2 is optimized to cover more than 99.9% of routes within the single-aisle segment.
Taking to the skies
Advanced connectivity
